Types of Content You Can Upload

Discover every asset type Spatial Companion supports - from standard videos and 3D models to PDFs, websites, portals, and immersive video formats.

Types of contents you can upload:

3D Model

A fully 3D object rendered directly in the user's space. The user can move, scale, and rotate the model with natural hand gestures, and place it anywhere in the room. If the model contains one or more embedded animations, each can be activated or paused with a double-tap. Supports physically based materials, textures, and lighting.

If the model is structured with a parent-child mesh hierarchy, an Explosion view is available - parts separate and spread out spatially, letting the user explore the internal components of the object.

Models can also be placed in Plane Anchored mode, where the object is locked to a detected real-world surface (floor or table) and stays in place as the user moves around.

Format .usdz
Max size per mesh 200 MB
Maximum Dimensions 2 GB

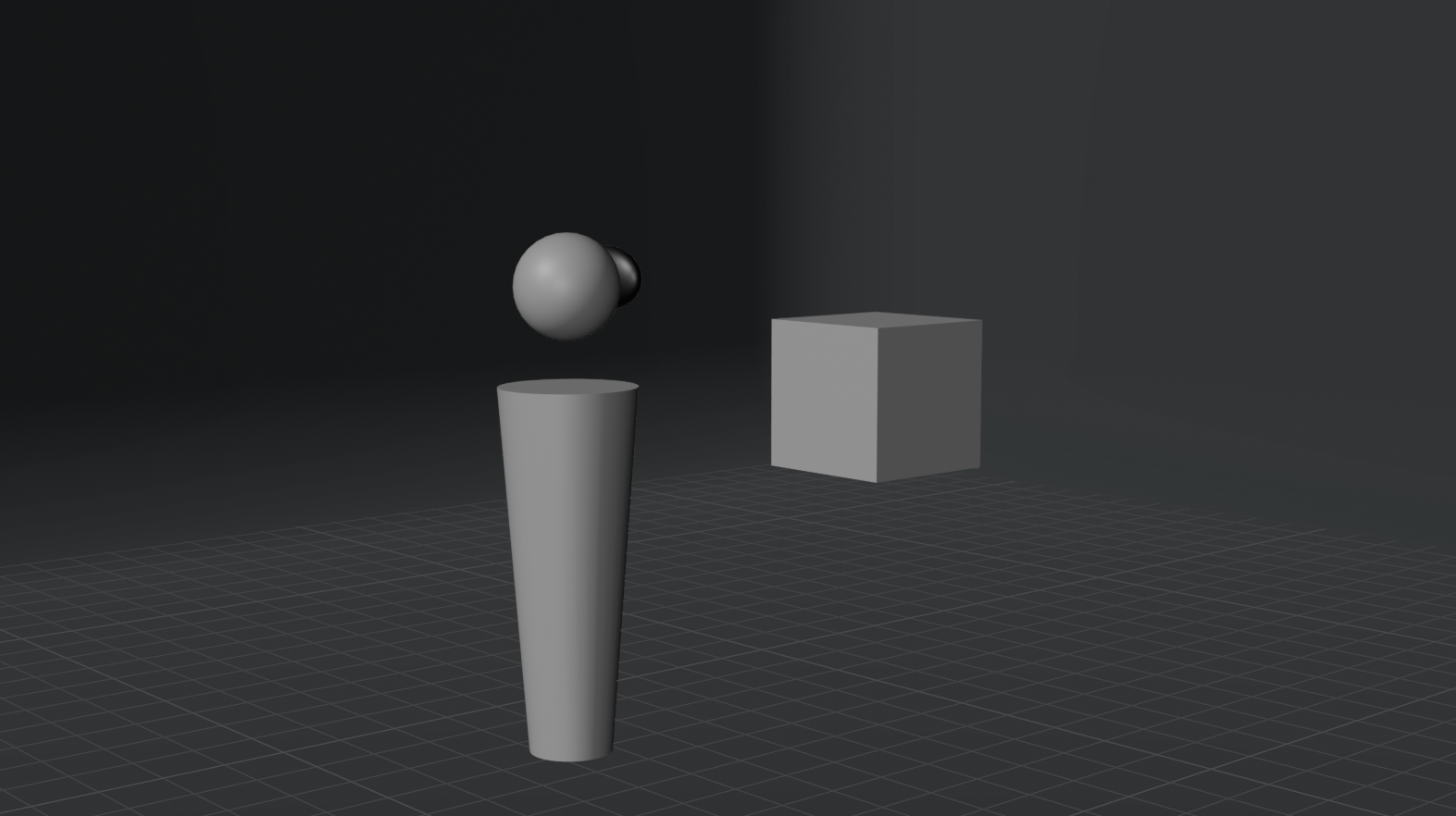

3D Model preview in Spatial Companion

PDF Document

A PDF document rendered on a large flat panel in the user's space. The user can scroll through pages, zoom in on details, and read the content comfortably. Ideal for manuals, guides, reports, brochures, and any text or image-rich documents.

Format .pdf
Maximum Dimensions 10 GB

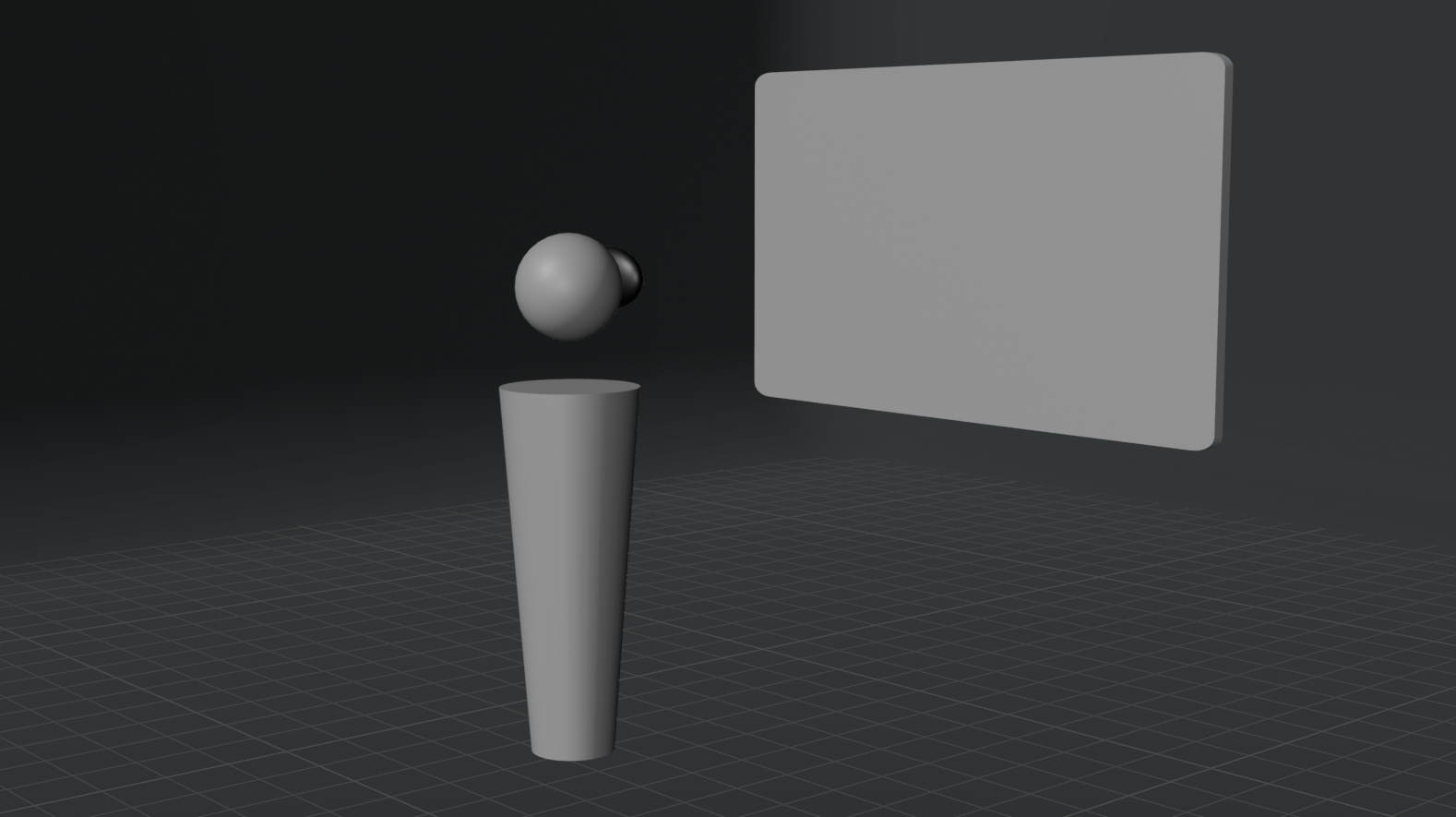

PDF Document preview in Spatial Companion

Website

A live web page displayed on a flat 2D panel in the user's space. The user can browse, scroll, tap links, and interact with the page just like in a standard browser - all within their immersive environment. Useful for embedding live dashboards, documentation portals, or interactive web apps.

Format URL -> https://
Website preview in Spatial Companion

Portal Experience

A portal gate is a window into another world. A framed opening appears in front of the user who can physically walk through it to enter a fully immersive environment on the other side. The portal can be filled with a 360° image, a 360° video, or a 3D scene. The content is anchored to the portal center - everything the user sees inside is relative to where the portal is placed.

Format .png, .jpg, .jpeg, .exr, .hdr, .mp4, .mov, .usd
Max output quality 8192 Long Side
Max size per mesh 200 MB
Maximum Dimensions 5 GB

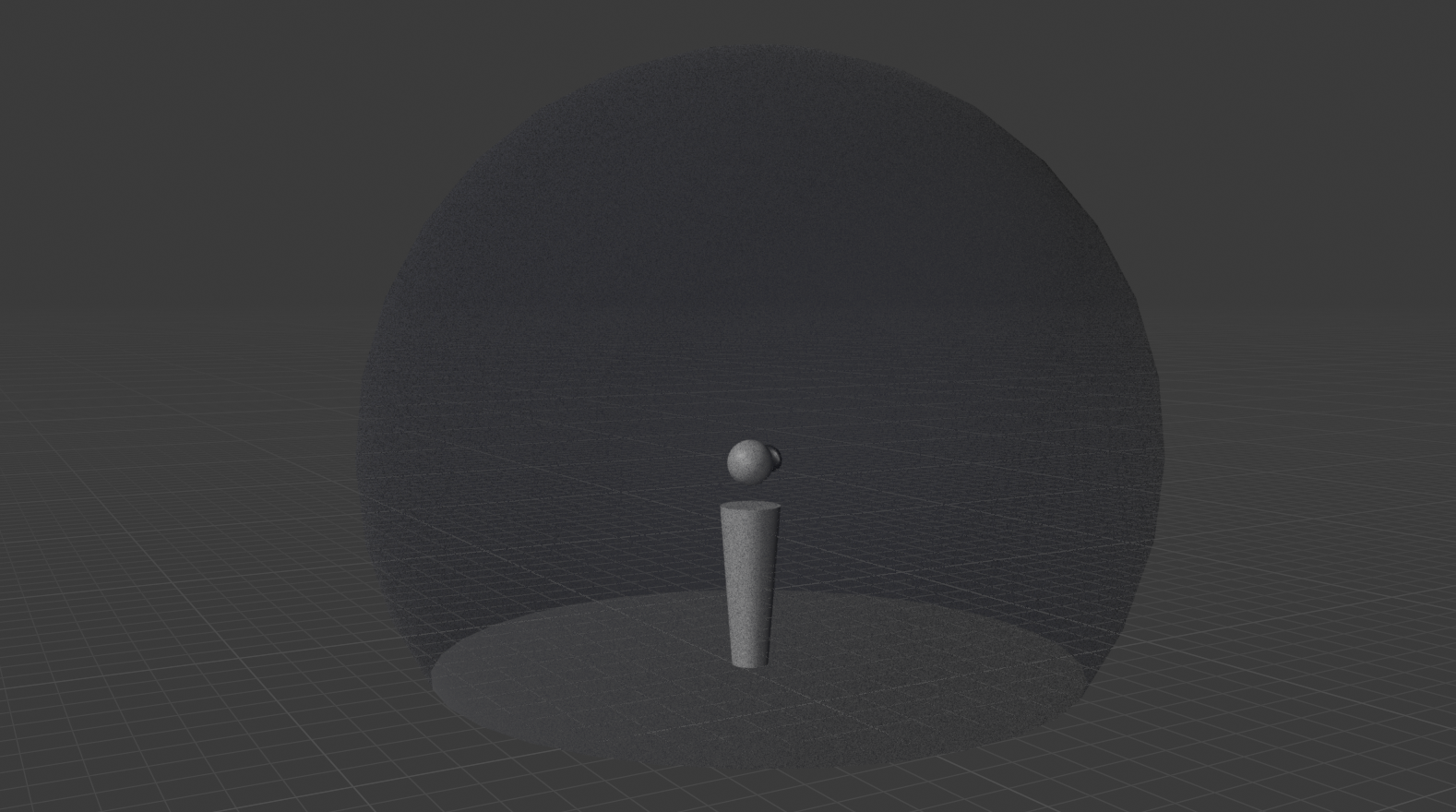

Portal Experience preview in Spatial Companion

Video

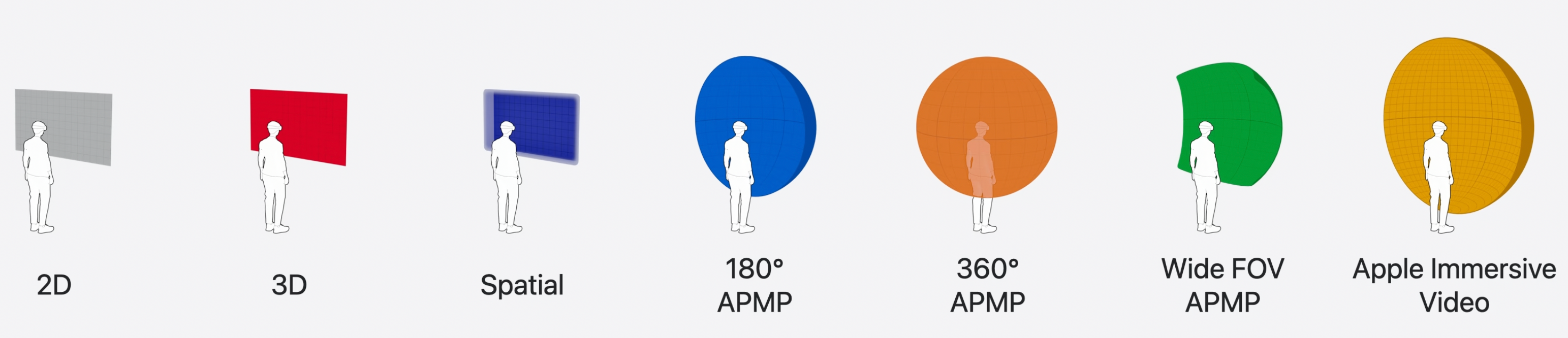

Overview of the video formats supported in Spatial Companion
FormatProjectionData Acquisition DevicesDegrees of Freedom / Immersion
2D / 3D StandardRectilinear (Flat)Professional cameras, iPhoneView on a flat virtual screen
Spatial VideoRectilinear + MetadataiPhone (many models), Vision Pro, Canon R7/R50 (Dual Lens)Window mode (Windowed/Immersive)
APMP (180° / 360°)equirectangular / Half-EquiDedicated VR camerasPartial or full wrap (spherical)
APMP (WFOV)Parametric Immersive EnvironmentAction Cam (GoPro Hero 13, Insta360 Ace Pro 2)Curved reconstruction of the field of view
Apple ImmersiveHigh-End ParametricsBlackmagic Ursa Cinemersive

Standard Video

A standard flat video displayed on a 2D screen floating in the user's space. The user can watch it comfortably alongside other content. Ideal for presentations, tutorials, and standard video content.

File Format .mp4, .mov
Max output quality 8192 Long Side
Maximum Dimensions 10 GB
Standard Video preview in Spatial Companion

360 Video

A 360° spherical video that completely surrounds the user.

Once played, the entire environment is replaced by the video - the user can look up, down, left, right and behind to explore every direction of the scene. Ideal for virtual tours, immersive storytelling, and spatial experiences.

File Format .mp4, .mov
Max output quality 8192 Long Side
Maximum Dimensions 10 GB
Example capture sources GoPro MAX, Insta360 X5
360 Video preview in Spatial Companion

180 Video

Immersive video formats designed for wide-angle and spatial projection. 180° videos wrap around the viewer's forward field of view, creating a deeply enveloping half-dome experience. Wide FOV content uses embedded lens intrinsic and extrinsic metadata to faithfully reproduce the original capture perspective with precise geometric accuracy. Both formats can be monoscopic or stereoscopic, and the correct playback mode is determined automatically from the file's projection metadata.

File Format .mov (MV-HEVC)
Max output quality 8192 Long Side
Maximum Dimensions 10 GB
Example capture sources Canon EOS VR, Spherical v1/v2

180° Immersive

Codec HEVC / MV-HEVC + APMP
Projection Half-equirectangular
Required Metadata ProjectionKind = 180°, view packing

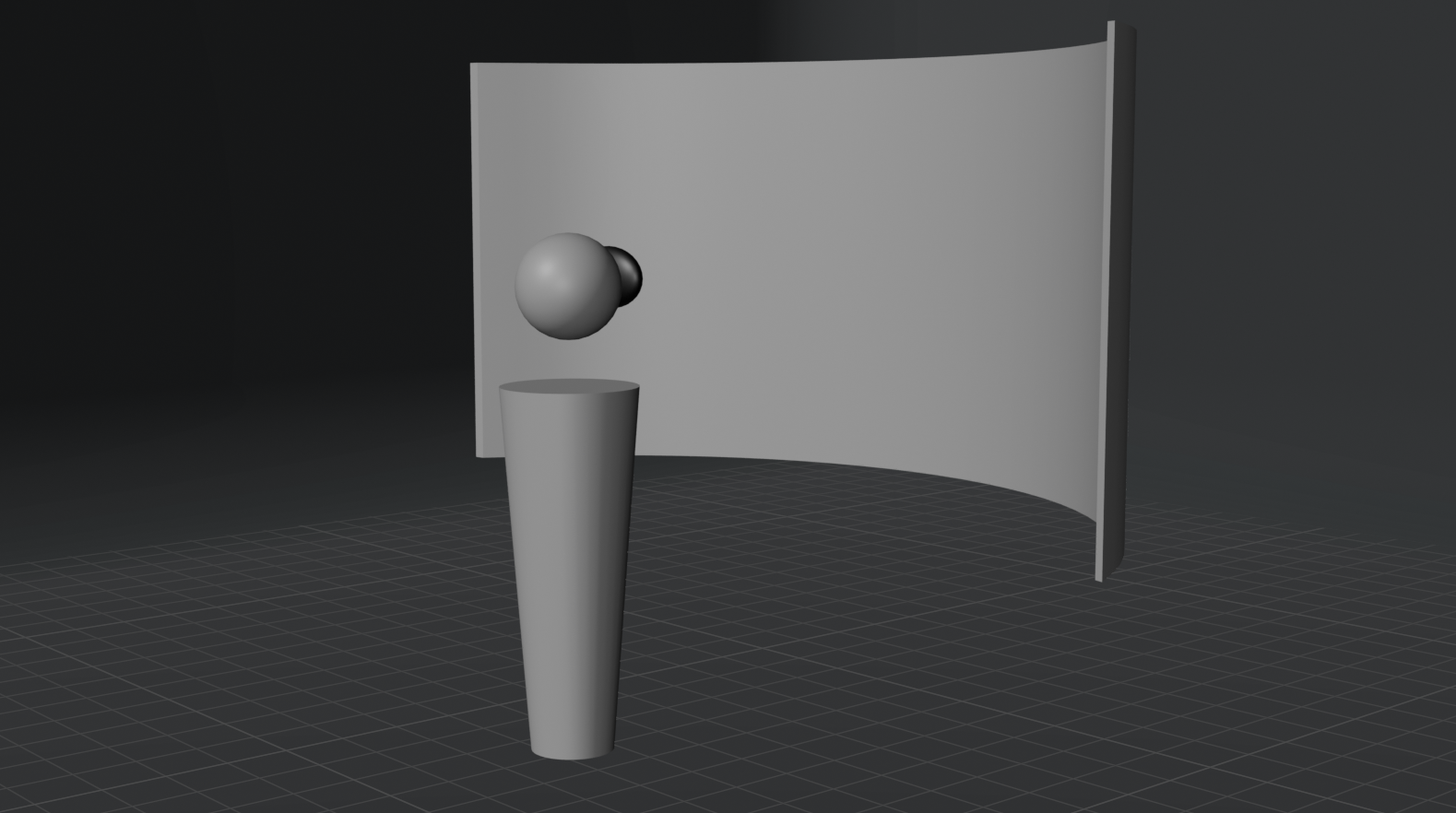

180 Video - 180° Immersive preview

Wide FOV

Codec HEVC / MV-HEVC + APMP
Projection Parametric
Required Metadata Lens intrinsics / extrinsics
Example capture sources GoPro HERO13, Insta360 Ace Pro 2

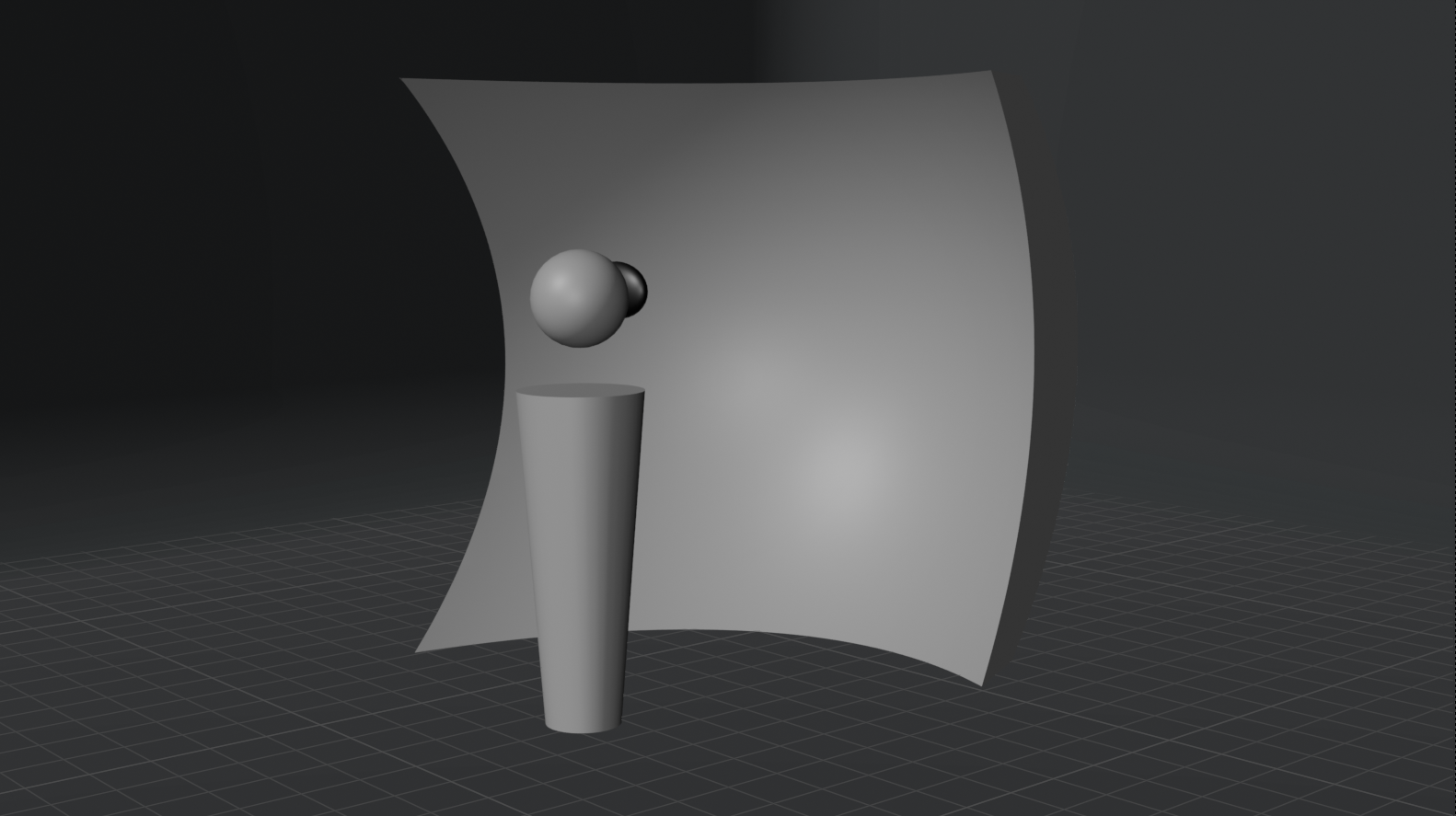

180 Video - Wide FOV preview

Spatial Experience

Spatial photos and videos use stereoscopic capture to deliver a true sense of depth and presence. Unlike standard 2D media, spatial content creates the perception that subjects and scenes exist in real three-dimensional space around the viewer. Supports multiple projection modes - from flat stereo 3D to 180° and 360° immersive formats - as defined by the embedded metadata.

File Format .heic, .jpg, .png, .mov (MV-HEVC)
Max output quality 8192 Long Side
Maximum Dimensions 10 GB
Example capture sources iPhone, Apple Vision Pro

Spatial 3D with depth

Codec MV-HEVC
Projection Rectilinear
Required Metadata Stereo view, baseline, FOV

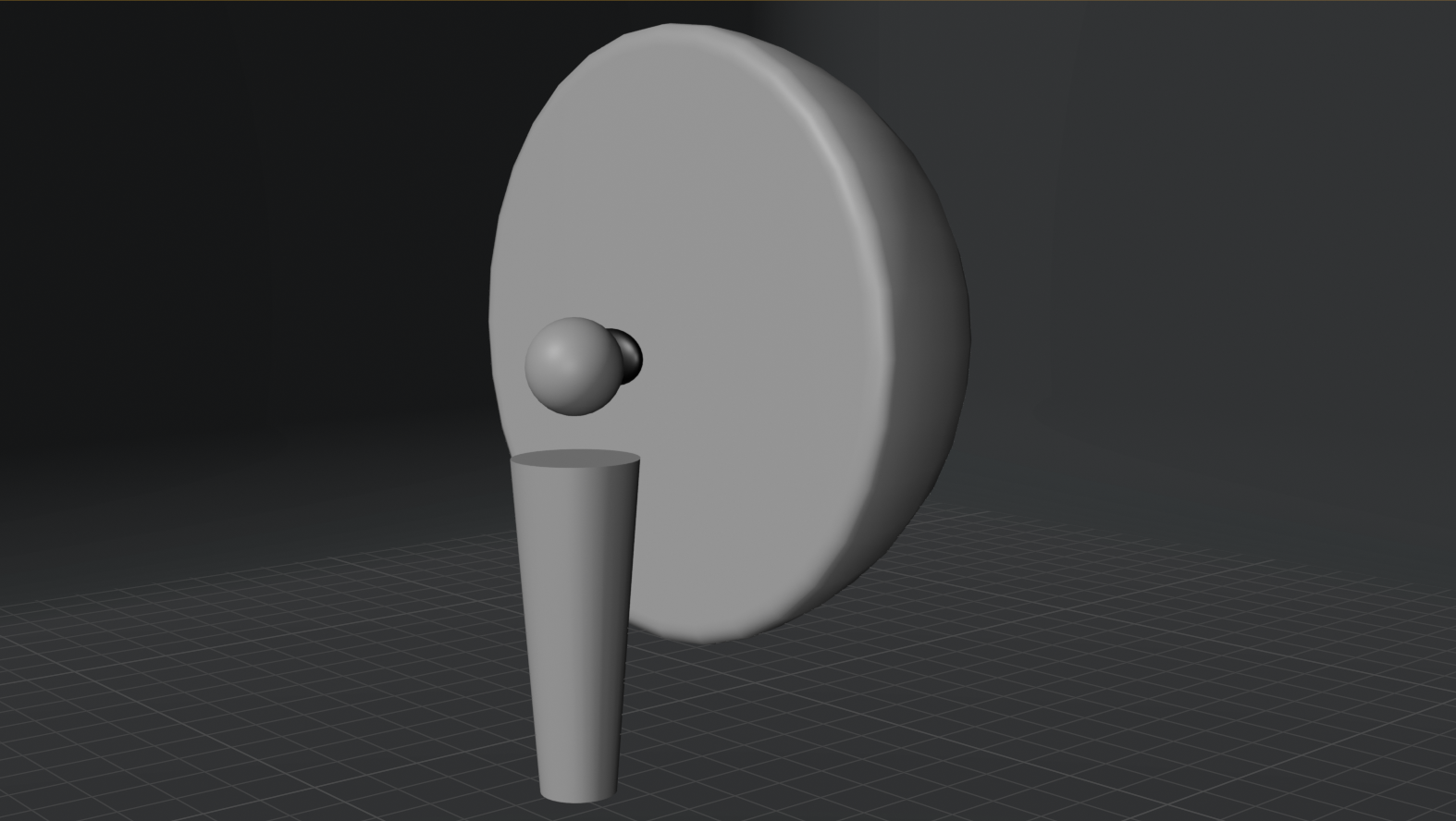

Spatial Experience - Spatial 3D with depth preview

Apple Immersive Video

Apple Immersive Video is a high-resolution stereoscopic 180° video format designed specifically for Apple Vision Pro.

It delivers a cinematic, fully immersive experience that surrounds the viewer in a 180° field of view with spatial audio. Captured at 8K per eye, it is the highest quality immersive video format supported on the platform.

File Format .aivu
Max output quality 8192 Long Side
Maximum Dimensions 20 GB
Example capture sources Blackmagic URSA Cine Immersive

180° Immersive

Codec HEVC / MV-HEVC + APMP
Projection Half-equirectangular
Required Metadata ProjectionKind = 180°, view packing
Apple Immersive Video - 180° Immersive preview

Gaussian Splatting Beta

Gaussian Splatting is a next-generation technique for capturing and rendering photorealistic 3D scenes. Instead of traditional polygonal meshes, a scene is reconstructed as a cloud of millions of tiny colored 3D gaussians ("splats") that together reproduce real-world lighting, reflections, and fine detail with striking realism.

Once uploaded, the splat scene renders directly in the user's space and can be explored from any angle with natural movement - ideal for lifelike environment captures, real estate walkthroughs, and cultural heritage.

Support for Gaussian Splatting is coming soon and is currently in beta - specifications may change before general availability.

File Format .ply
Maximum Dimensions 10 GB

Next Steps

Learn more about how to Upload Assets.

Learn more about how to Share Content.
